1-640385-8
Manufacturer:
TE Connectivity
Mfr.Part #:
1-640385-8
Datasheet:
Description:

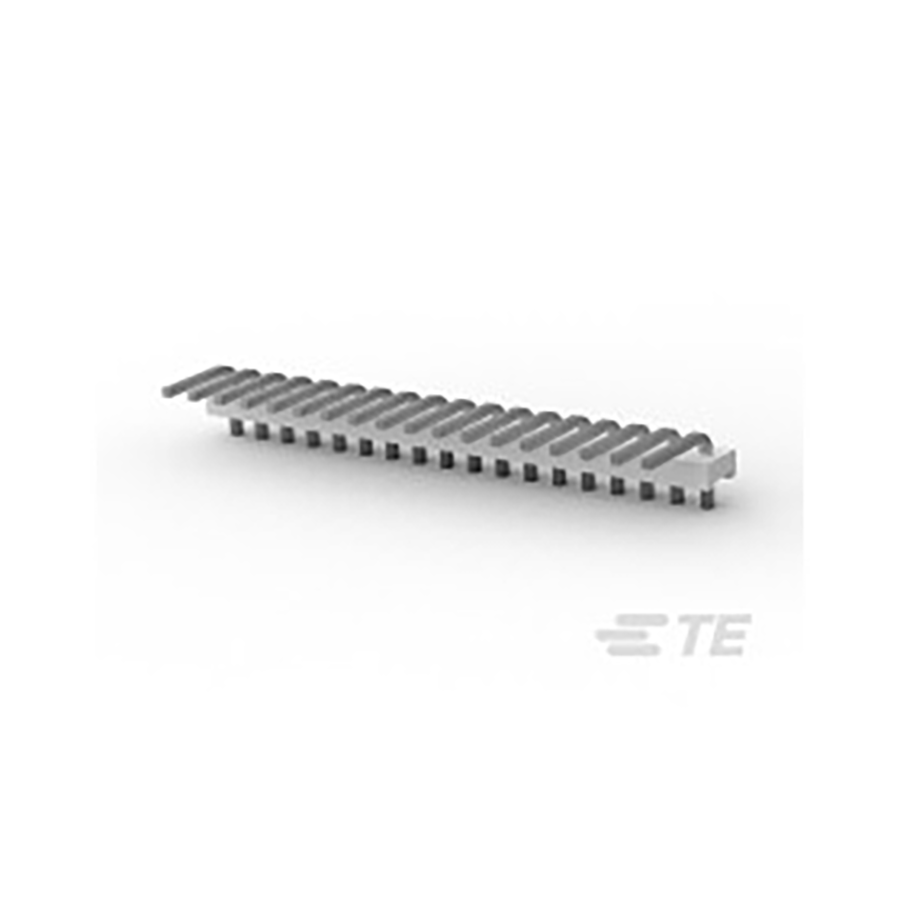

Headers and Wire Housings Through Hole Tab Number of Positions:18 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Length | 71.3232 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 600 V |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 16.26 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Lead Length | 3.18 mm |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 18 |
| ELV | Compliant |
| Connector Type | Tab |
| Number of Positions | 18 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Connector System | Wire-to-Board |
| Contact Resistance | 3 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 7 A |
| Housing Color | Natural, White |
| Plating | Tin |
| shrouded | No |
| Contact Mating Length | 9.906 mm |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 63 µm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Male |
| Number of Power Positions | 18 |
| Mating Post Length | 9.906 mm |
| Underplate Material | Nickel |
| Sealable | No |
| Contact Retention | Without |
| Termination Post Length | 3.18 mm |
